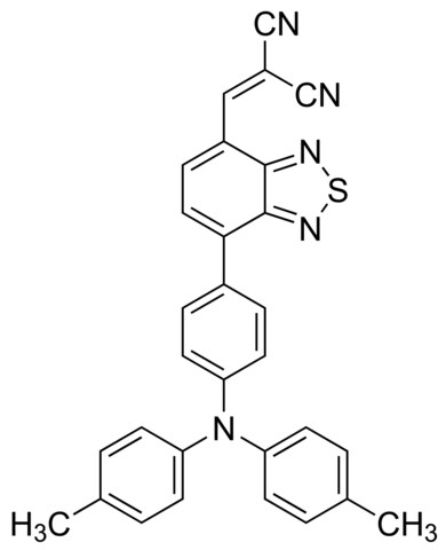

2-[(7-{4-[N,N-双(4-甲基苯基)氨基]苯基}-2,1,3-苯并噻二唑-4-基)亚甲基]丙二腈，2-[(7-{4-[N,N-Bis(4-methylphenyl)amino]phenyl}-2,1,3-benzothiadiazol-4-yl)methylene]propanedinitrile [DTDCPB]；97% (HPLC)

  • 首页 /
  • 化学 /
  • 电子材料, Electronic Materials /
  • 2-[(7-{4-[N,N-双(4-甲基苯基)氨基]苯基}-2,1,3-苯并噻二唑-4-基)亚甲基]丙二腈，2-[(7-{4-[N,N-Bis(4-methylphenyl)amino]phenyl}-2,1,3-benzothiadiazol-4-yl)methylene]propanedinitrile [DTDCPB]；97% (HPLC)
图片 2-[(7-{4-[N,N-双(4-甲基苯基)氨基]苯基}-2,1,3-苯并噻二唑-4-基)亚甲基]丙二腈，2-[(7-{4-[N,N-Bis(4-methylphenyl)amino]phenyl}-2,1,3-benzothiadiazol-4-yl)methylene]propanedinitrile [DTDCPB]；97% (HPLC)
Empirical Formula (Hill Notation): C30H21N5S CAS号: 1393343-58-2 分子量: 483.59 MDL编号: MFCD24849728 PubChem化学物质编号: 329767879 NACRES: NA.23
制造商品牌: 西格玛 Sigma-Aldrich
货号（SKU）: 777048
CAS号: 1393343-58-2
MDL号: MFCD24849728
签订合同 √ 正规发票 √ 技术支持 √ 质量保障 √ 全程可追溯 √
¥2,906.32

说明

2-((7-{4-[N,N-双(4-甲基苯基)氨基]苯基}-2,1,3-苯并噻二唑-4-基)亚甲基)丙二腈(DTDCPB)是一种供体-受体分子 可用于制造有机电子器件，例如有机太阳能电池（OSC）和有机光伏（OPV）。

一般描述

2-((7-{4-[N,N-Bis(4-methylphenyl)amino]phenyl}-2,1,3-benzothiadiazol-4-yl)methylene)propanedinitrile (DTDCPB) is a donor-acceptor molecule which can be used in the fabrication of organic electronic devices such as organic solar cells (OSCs) and organic photovoltaics (OPVs).


应用

7.9% efficient vapor-deposited organic photovoltaic cells base on a simple bulk heterojunction

A vacuum-deposited organic solar cell employing this novel donor-acceptor-acceptor (D-A-A) donor molecule; DTDCPB; combined with the electron acceptor C60/ C70 achieved a record-high power conversion efficiency (PCE) of 6.8%.
Device structure:
MoO3 (30nm) / DTDCPB (7nm) / DTDCPB:C70 (40nm) / C70 (7nm) / BCP (10nm) / Ag (150nm)
Device performance:
  • JSC = 13.48 mA/cm2
  • VOC = 0.95 V
  • FF = 0.55
  • PCE = 6.8%



属性

质量水平

100

测定

97% (HPLC)

形式

powder

mp

285-290 °C

λmax

570 nm in dichloromethane

SMILES string

Cc1ccc(cc1)N(c2ccc(C)cc2)c3ccc(cc3)-c4ccc(\C=C(/C#N)C#N)c5nsnc45

InChI

1S/C30H21N5S/c1-20-3-10-25(11-4-20)35(26-12-5-21(2)6-13-26)27-14-7-23(8-15-27)28-16-9-24(17-22(18-31)19-32)29-30(28)34-36-33-29/h3-17H,1-2H3

InChI key

METIWNNPHPBEHP-UHFFFAOYSA-N



安全信息

象形图

Exclamation mark
GHS07

警示用语：

Warning

危险分类

Acute Tox. 4 Dermal - Acute Tox. 4 Inhalation - Acute Tox. 4 Oral - Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3

靶器官

Respiratory system

储存分类代码

11 - Combustible Solids

WGK

WGK 3

商品规格
属性名称属性值
储存温度 Storage temp.常温阴凉避光
全球实时库存 Availability √美国St. Louis ≥ 50 | 欧洲Eur. ≥ 12 | 東京Tokyo ≥ 20 | 香港与北京 ≥ 50
