聚(偏二氟乙烯-co-三氟乙烯),Solvene®250/P400;P(VDF-TrFE)

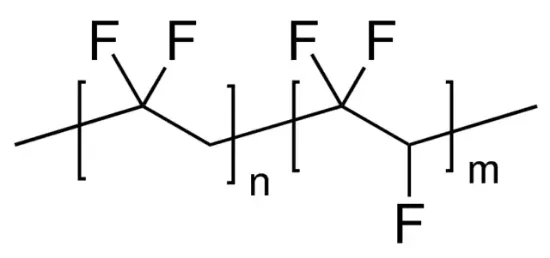

别名:聚(偏二氟乙烯-共聚三氟乙烯);含氟聚合物树脂;Poly(vinylidene fluoride-co-trifluoroethylene);Fluoropolymer resin;P(VDF-TrFE) 线性分子式: (C2H2F2)n(C2HF3)m CAS号: 28960-88-5 NACRES: NA.23
制造商品牌: 西格玛 Sigma-Aldrich
货号(SKU): 900904
CAS号: 28960-88-5
签订合同 √ 正规发票 √ 技术支持 √ 质量保障 √ 全程可追溯 √
¥2,350.37

说明

一般描述

1-Butyl-2,3-dimethylimidazolium bis(trifluoromethylsulfonyl)imide is a class of electrolytic materials that can be used in the fabrication of lithium-ion batteries. Lithium-ion batteries consist of anode, cathode, and electrolyte with a charge-discharge cycle. These materials enable the formation of greener and sustainable batteries for electrical energy storage.
Solvene® electro-active polymer is a family of ferroelectric polymers and ferrorelaxor polymers which combines excellent electro mechanical properties with easy processing.
Solvene®250 P(VDF-TrFE) copolymers are inherently piezo-, pyro- and ferroelectric, enabling applications such as printed memories, sensors, actuators, loudspeaker, acoustic transducers, energy harvesting devices.
Solvene® materials can be processed by applying various techniques, from classic extrusion to different printing techniques on various substrates which include flexible plastic films or paper.


法律信息

Solvene®is a registered trademark of Solvay Group
Product of Solvay Specialty Polymers USA LLC.
Solvene is a registered trademark of Solvay Specialty Polymers USA LLC



属性

描述

Curie peak: 114±3 °C
MFI (melt flow index): 0.2-1.5
Piezoelectric coefficient (d33): -23 pC/N at 110Hz

质量水平

100

形式

powder

分子量

average mol wt 400,000 (given as an indication)

组成

TrFE, 25 mol %
VDF, 75 mol %

介电常数

14, 1 kHz (at 23 °C)

mp

146 °C±2 °C

InChI

1S/C2HF3.C2H2F2/c3-1-2(4)5;1-2(3)4/h1H;1H2

InChI key

XLOFNXVVMRAGLZ-UHFFFAOYSA-N



安全信息

储存分类代码

11 - Combustible Solids

WGK

WGK 3

商品规格
属性名称属性值
储存温度 Storage temp.常温阴凉避光
全球实时库存 Availability √美国St. Louis ≥ 30 | 欧洲Eur. ≥ 10 | 東京Tokyo ≥ 9 | 香港与北京 ≥ 30
