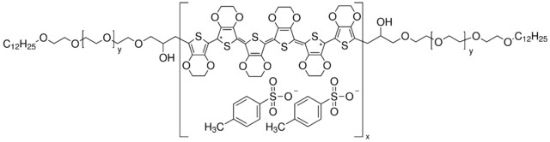

聚(3,4-乙烯二氧噻吩),双聚(乙二醇),月桂基封端，Poly(3,4-ethylenedioxythiophene), bis-poly(ethyleneglycol), lauryl terminated [PEDOT:PEG]；0.7 wt. % (dispersion in nitromethane), contains p-toluenesulfonate as dopant

  • 首页 /
  • 化学 /
  • 电子材料, Electronic Materials /
  • 聚(3,4-乙烯二氧噻吩),双聚(乙二醇),月桂基封端，Poly(3,4-ethylenedioxythiophene), bis-poly(ethyleneglycol), lauryl terminated [PEDOT:PEG]；0.7 wt. % (dispersion in nitromethane), contains p-toluenesulfonate as dopant
图片 聚(3,4-乙烯二氧噻吩),双聚(乙二醇),月桂基封端，Poly(3,4-ethylenedioxythiophene), bis-poly(ethyleneglycol), lauryl terminated [PEDOT:PEG]；0.7 wt. % (dispersion in nitromethane), contains p-toluenesulfonate as dopant
别名：Aedotron P3-NM；C12-PEG-block-PEDOT-block-PEG-C12；PEDOT:PEG； NACRES: NA.23
制造商品牌: 西格玛 Sigma-Aldrich
货号（SKU）: 736295
签订合同 √ 正规发票 √ 技术支持 √ 质量保障 √ 全程可追溯 √
¥2,395.25

说明

月桂基封端的聚 (3,4-乙烯二氧噻吩)、双聚 (乙二醇) (PEDOT:PEG) 是一种导电聚合物，可用作有机电子产品中的空穴注入层 (HIL)。 它的电导率为 0.4 Scm-1，功函数为 4.33eV。 它形成含有高氯酸盐掺杂的 PEDOT-co-PEG 的非酸性溶液。

PEDOT:PEG 可用作空穴传输层 (HTL)，可涂覆在氧化铟锡 (ITO) 基板上，用于制造聚合物太阳能电池 (PSC)。 它还可用于开发其他电子器件，包括有机发光二极管 (OLED) 和有机薄膜晶体管 (OTFT)。

嵌段共聚物结构使导电聚合物 PEDOT 在有机溶剂中高度分散。 硝基甲烷具有适合旋涂的挥发性。

一般描述

Lauryl terminated poly(3,4-ethylenedioxythiophene), bis-poly(ethyleneglycol) (PEDOT:PEG) is a conductive polymer that can be used as a hole injection layer (HIL) in organic electronics. It has a conductivity of 0.4 Scm-1 and a work function of 4.33eV. It forms a non-acidic solution which contains the perchlorate doped PEDOT-co-PEG.


应用

PEDOT:PEG can be used as a hole transporting layer (HTL) that can be coated on indium tin oxide (ITO) substrate for the fabrication of polymeric solar cells (PSCs). It can also be used in the development of other electronic devices which include organic light emitting diodes (OLEDs) and organic thin film transistors (OTFTs).


特点和优势

The block copolymer structure renders the conducting polymer PEDOT highly dispersible in organic solvents. Nitromethane has a suitable volatility for spin coating.


法律信息

Aedotron is a trademark of TDA Research, Inc.



属性

形式

liquid (dispersion)

质量水平

100

包含

p-toluenesulfonate as dopant

组成

Aedotron™ TM-P3 polymer, 0.8-1.2 wt. %
ethanol, 4-8 wt. %
isopropanol, 0.2-0.8 wt. %
nitromethane, 90-95 wt. %

浓度

0.5-0.9 wt. % (solid concentration)
0.7 wt. % (dispersion in nitromethane)

折射率

n20/D 1.381

电导率

10−2-10−4 S/cm (bulk)

密度

1.107 g/mL at 25 °C



安全信息

警示用语：

Warning

危险分类

Acute Tox. 4 Inhalation - Acute Tox. 4 Oral - Carc. 2 - Flam. Liq. 3 - Repr. 2

储存分类代码

3 - Flammable liquids

WGK

WGK 2

闪点(F)

78.1 °F - closed cup

闪点(C)

25.6 °C - closed cup

商品规格
属性名称属性值
储存温度 Storage temp.常温阴凉避光
全球实时库存 Availability √美国St. Louis ≥ 30 | 欧洲Eur. ≥ 10 | 東京Tokyo ≥ 9 | 香港与北京 ≥ 30
